Easypharma Ga/Ge
Reference :
00018324
Download the product sheet for more references

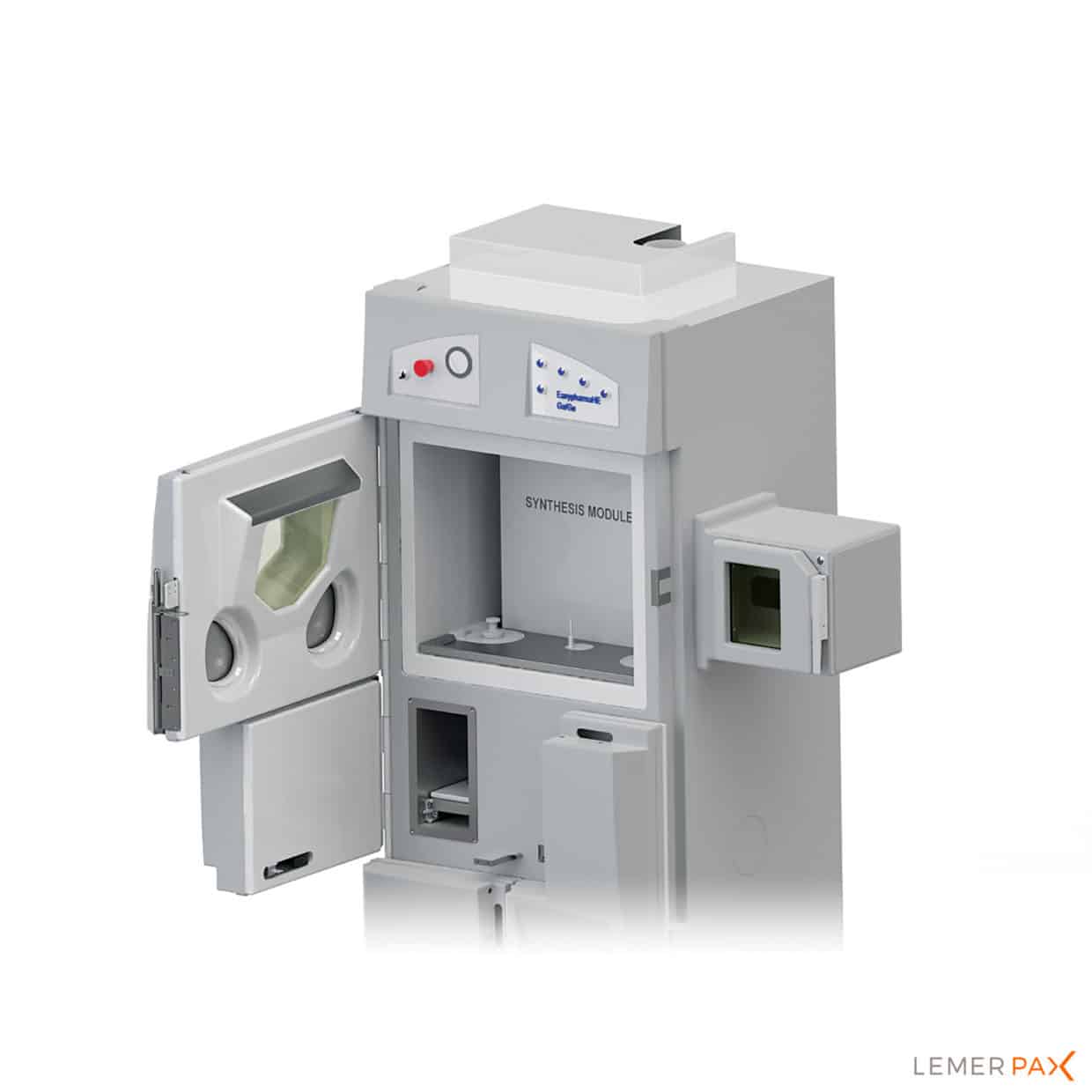

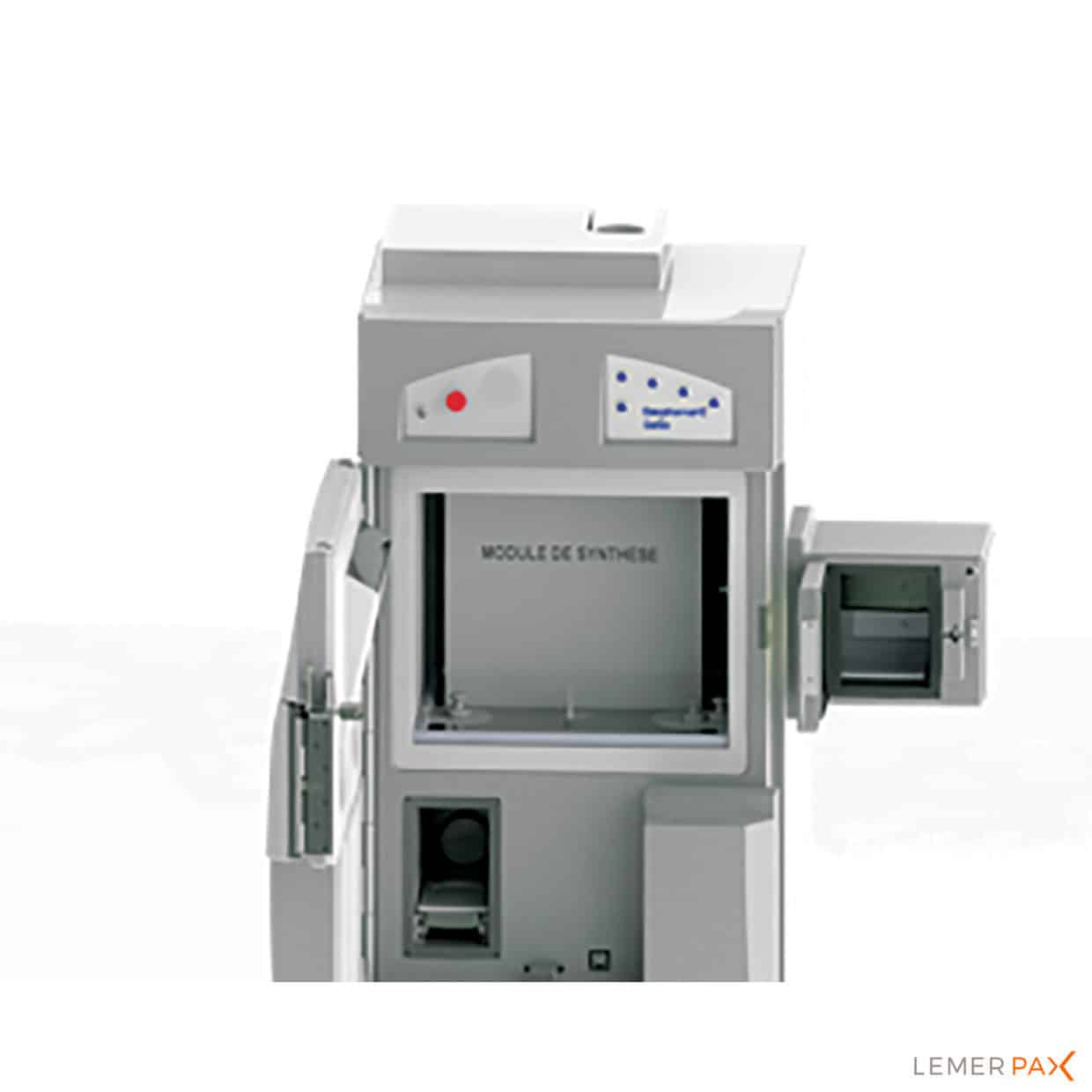

Hotcell for the synthesis of high energy radiopharmaceuticals
WHY CHOOSE Easypharma Ga/Ge
- By limiting both weight and size, easyPHARMA® HE Ga/Ge fits easily into any type of center
- Full front opening for easy cleaning
- Right or left airlock option
DESCRIPTION
ERGONOMICS
The front has a 7° inclination to ensure a comfortable working posture.
VERSATILE DESIGN
The work surface layout and shielding enable all type of high energy radiopharmaceuticals to be prepared, whatever the synthesis and production protocol.

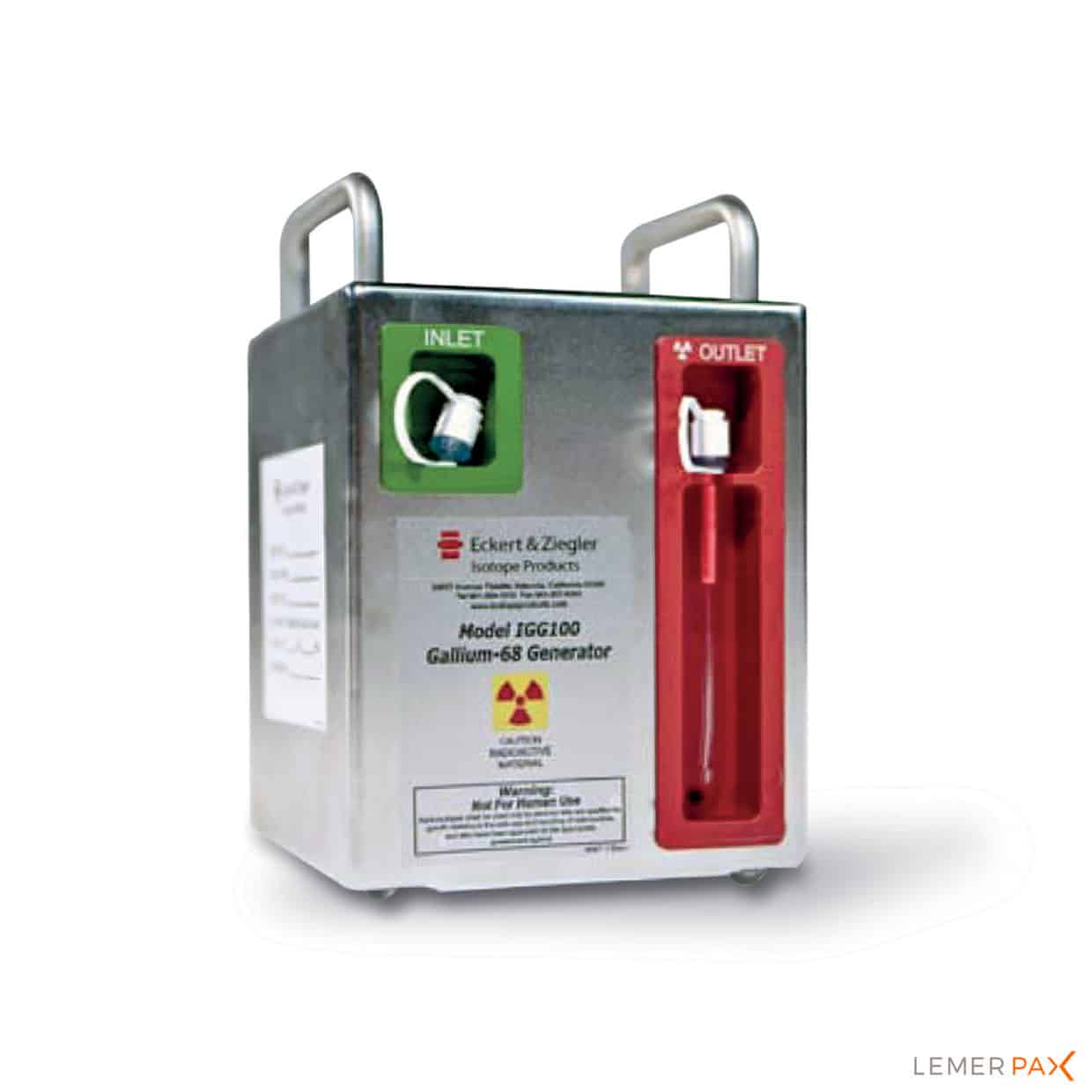

GENERATOR COMPARTMENT
A front door with a locking system allows access to the generator slide-out tray.
SHIELDED SIDE AIRLOCK (OPTION)
The exterior and interior access doors are equipped with a locking system. A sliding tray facilitates the transfer of accessories and consumables (maximum load. 15 Kg). The airlock is class C.
HYGIENE
The plenum HEPA filter and the perforations around the work surface ensure integrity of the filtration system and the homogeneity of the class A laminar flow (in accordance with ISO 14644 standards), to obtain total microbiological safety of the radiopharmaceuticals.
MAINTENANCE
The unit is quick and easy to clean thanks to the corner-free thermoformed work surface.
CHARACTERISTICS
- Radiation protection: 40 mm of lead
- Overall dimensions (mm): L 1220 x W 830 x H 1950
- Work area dimensions (mm): L 620 x W 580 x H 475
- Weight (excluding options): 2600 Kg
- Filtration : HEPA intake / aerosol filter and active charcoal outlet
- Ventilation: (ISO 4.8)
- Air extractor : 80 m3/h at the hot cell outlet (Ø100 mm)
- Vacuums: ≥ 120 Pa (Air Pressure gauge)
- LED-lighting
- Germicidal UV : 15 watts with adjustable time delay
- 2 sockets (electrical and/or USB)
- Power supply : 220V / 16A / 50Hz
- 1 year warranty
- Maximum radioactivity that can be handled on the work surface :
- - 16,62 GBq 131I (365 KeV)
- - 2,27 GBq 68Ga (511 KeV)
