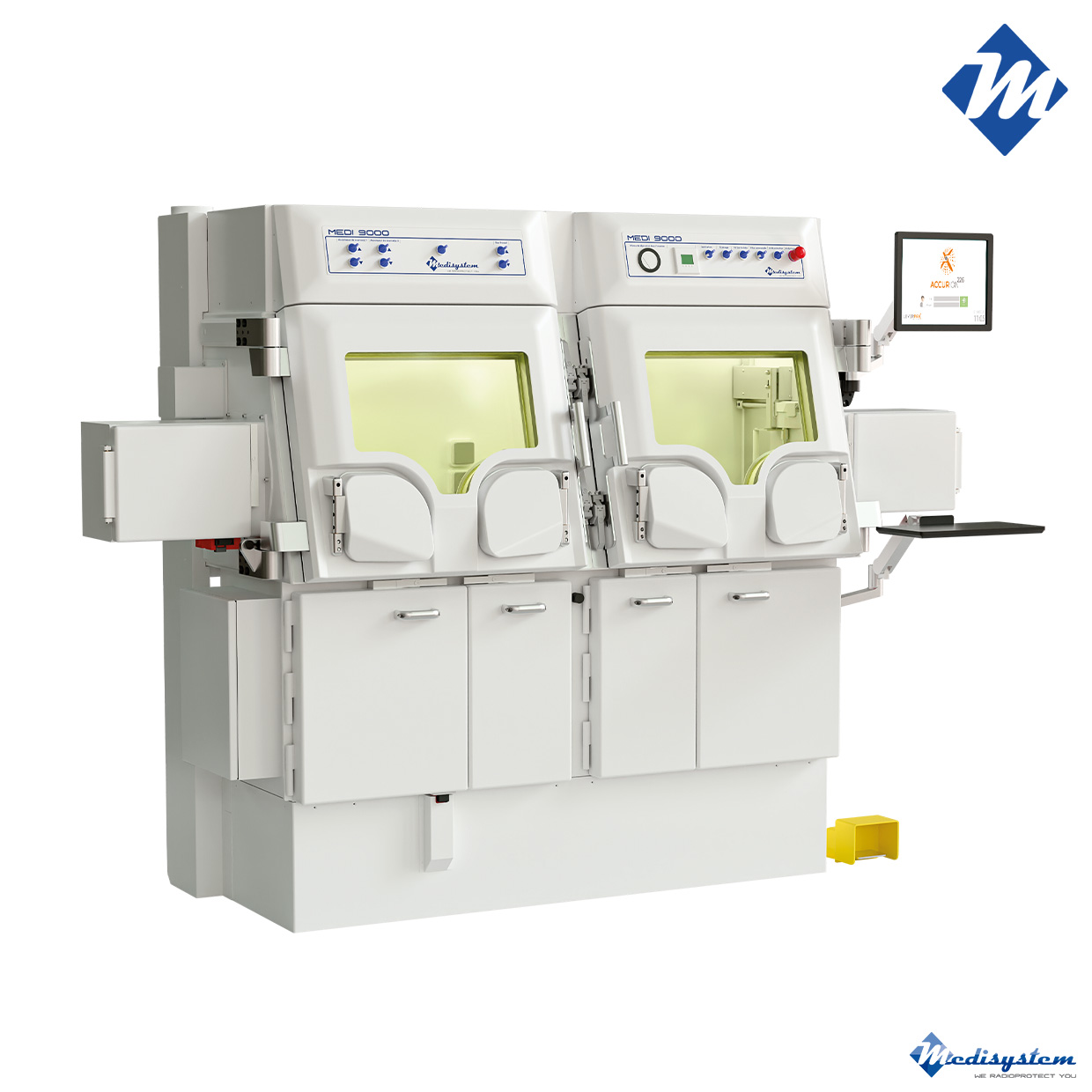

Medi 9000 PET 4R hot cell

The Medi 9000 PET shielded hot cell with 4 glove ports is for manual preparation and designed for measurement and fractionation of high-energy radiopharmaceuticals for Nuclear Medicine PET and SPECT activities. With its controlled Class A (ISO 5) laminar airflow across the entire work surface, it provides a safe environment for radiolabelling while ensuring compliance with good preparation practices and manufacturing practices.

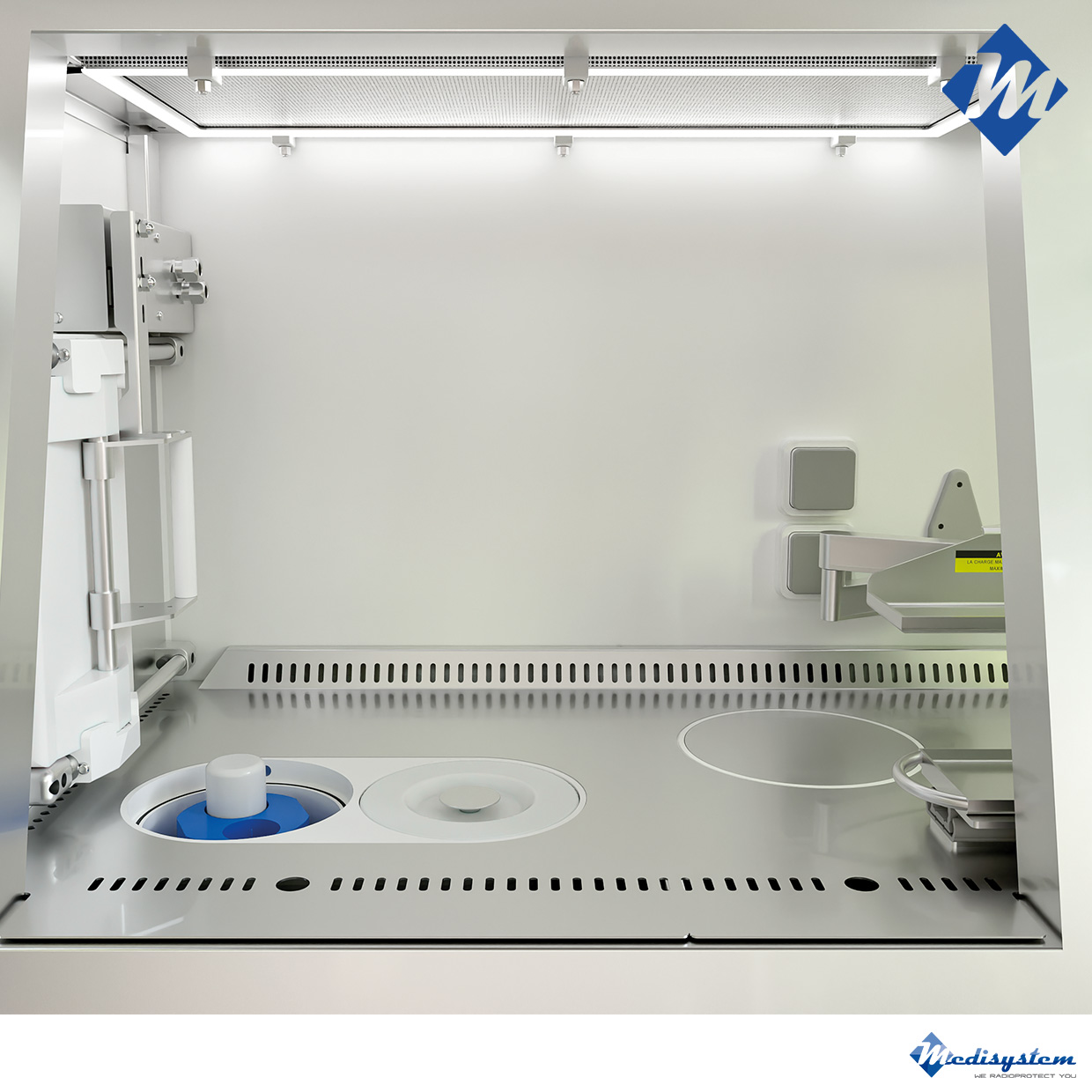

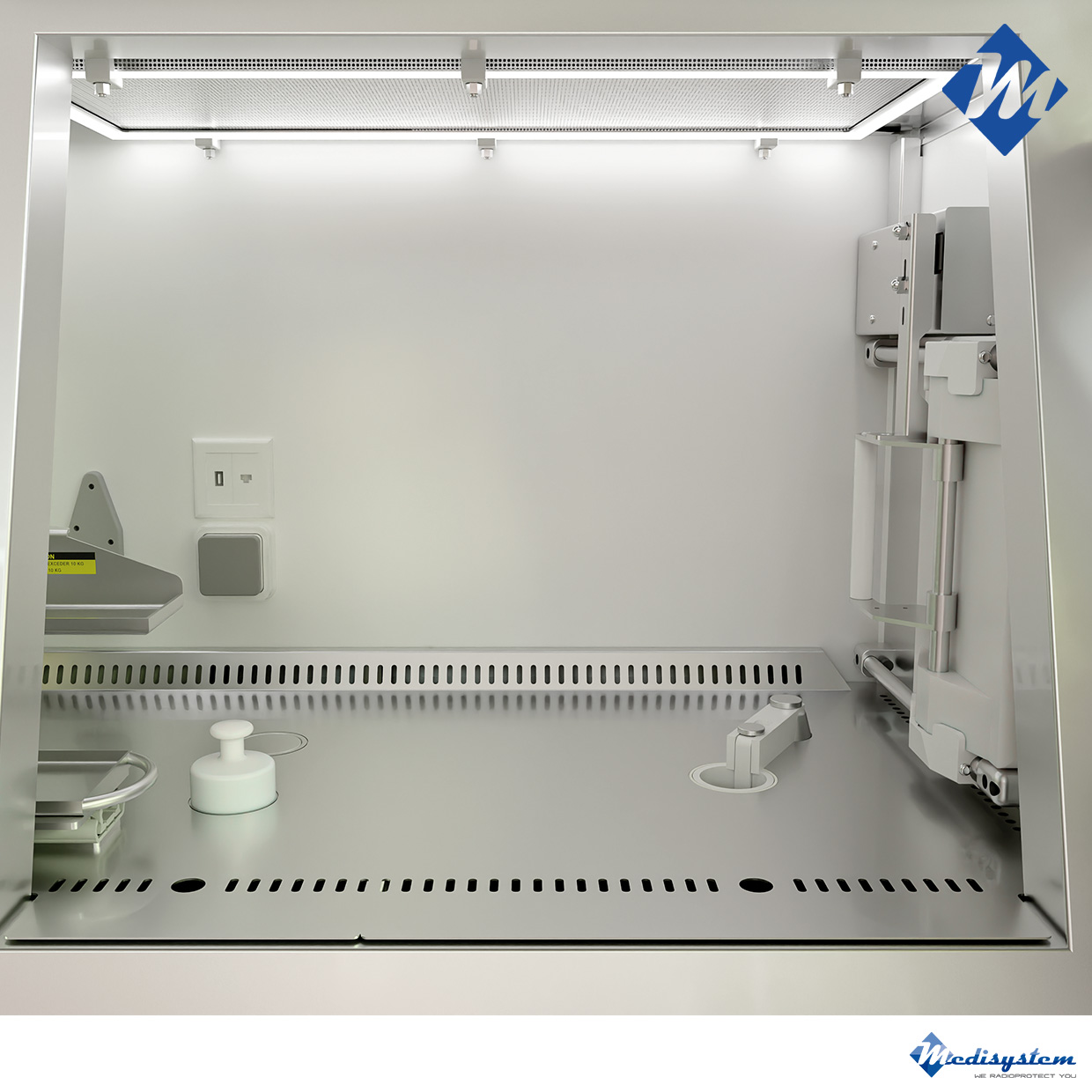

The Medi 9000 PET 4R shielded hot cell features a very spacious work surface with two workstations for one or two users. Thanks to its large lead glass viewing window made from scratch-resistant and chemical-resistant laminated Diamond Glass, the Medi 9000 PET 4R hot cell offers unique working comfort, while guaranteeing maximum radiation protection when handling the most highly irradiating radioisotopes such as 18F and 131I.

The hot cell is versatile and scalable, offering automated collection of patient doses with the optional Mediflash airlock chamber (patented product), further reducing user exposure.

Medi 9000 PET 4R: a user-friendly hot cell

The Medi 9000 PET 4R hot cell offers:

• 2 work surfaces offers both convenience and radiation protection, featuring two large lead glass viewing windows (130 mm thick) made from scratch-resistant and chemical-resistant laminated Diamond Glass.

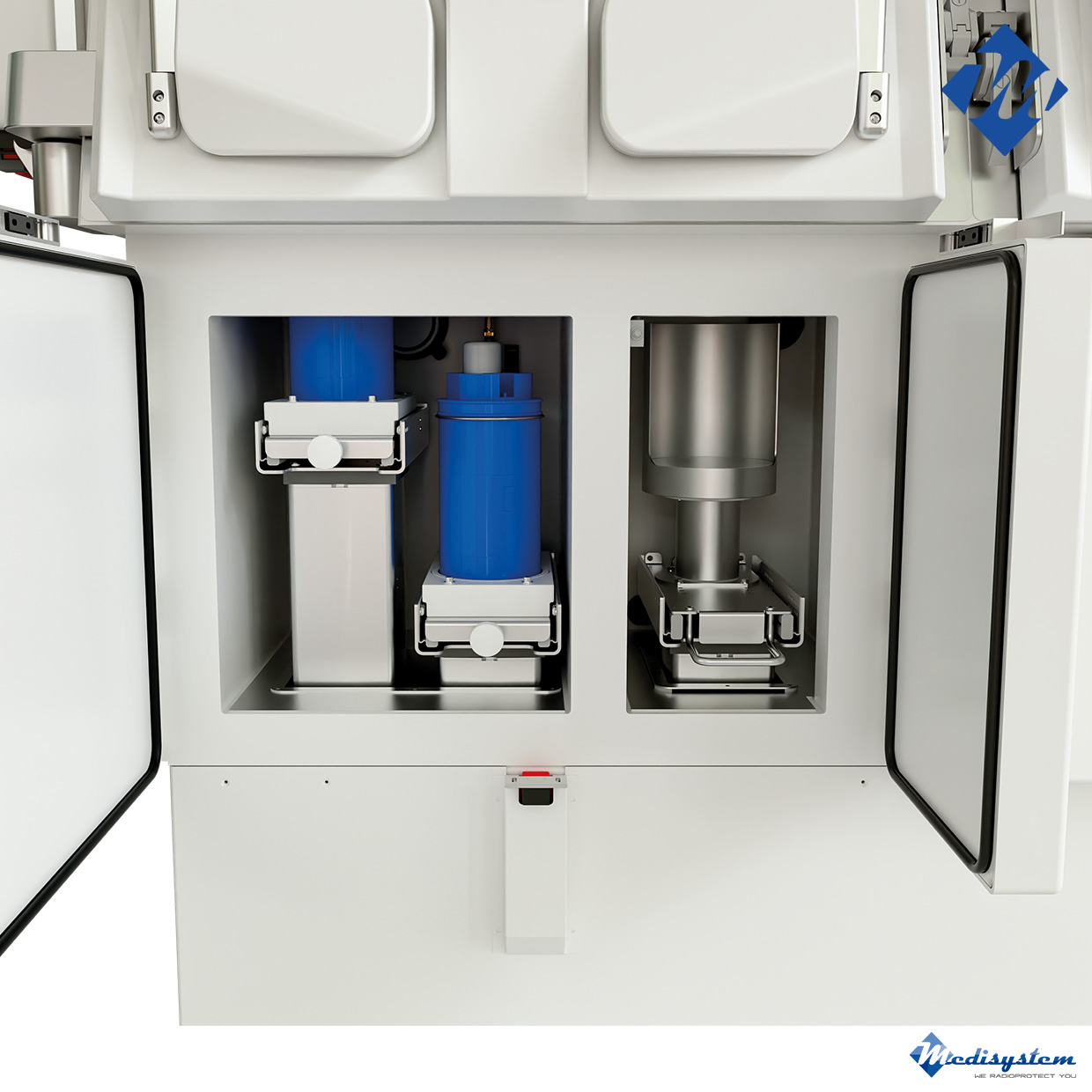

• A 50 mm lead-shielded, key-lockable generator compartment is equipped with two independent lifts, compatible with all commercially available generators, enabling the simultaneous use of two generators for daily elution procedures.

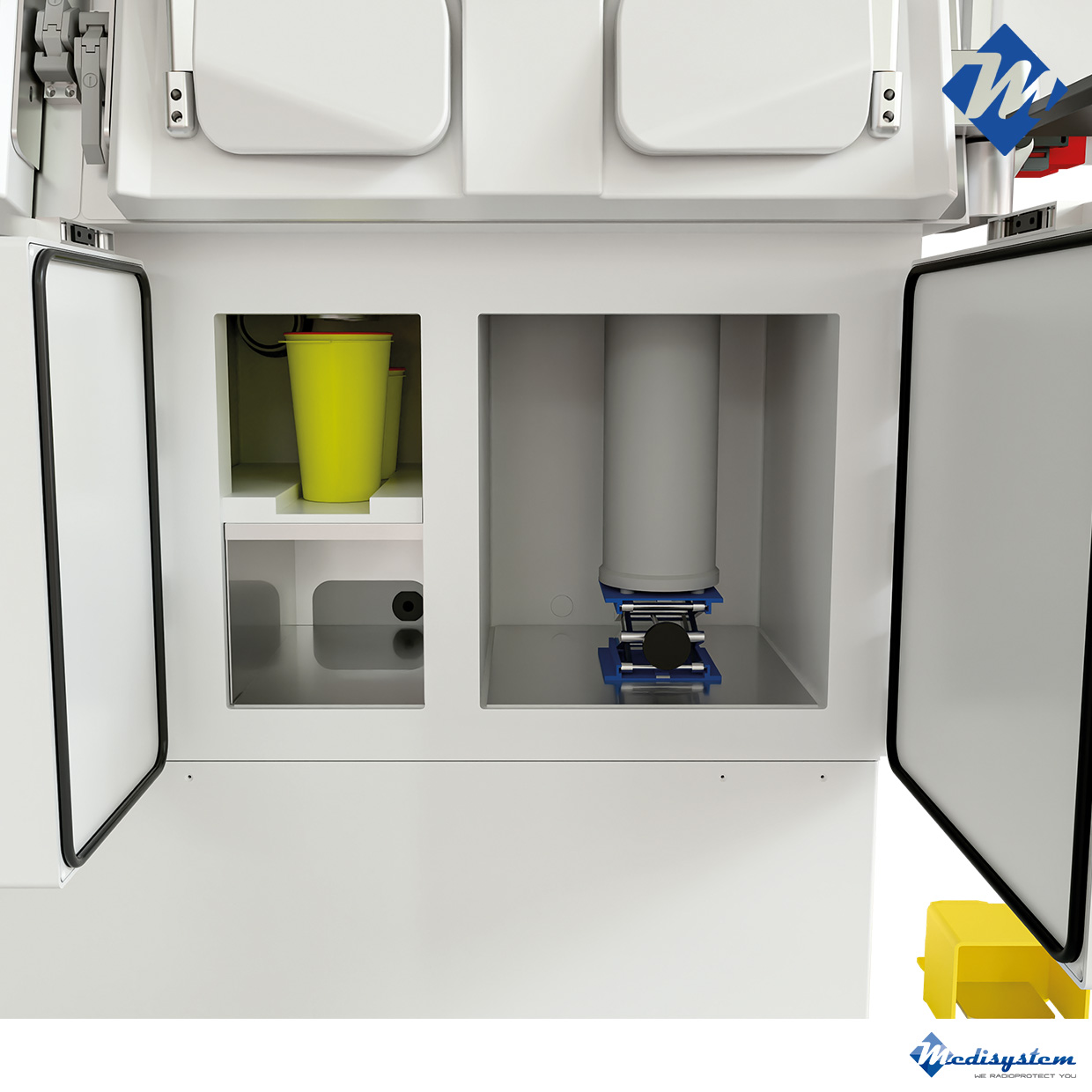

• A 40 mm lead-shielded, key-lockable pot compartment features an electric lift to avoid manual handling of heavy loads.
• A 40 mm lead-shielded dose calibrator compartment can accommodate any preferred measuring device, providing greater flexibility.
• A waste bin compartment is shielded with 40 mm of lead and includes two containers, accessible beneath the work surface, to facilitate contaminated waste sorting

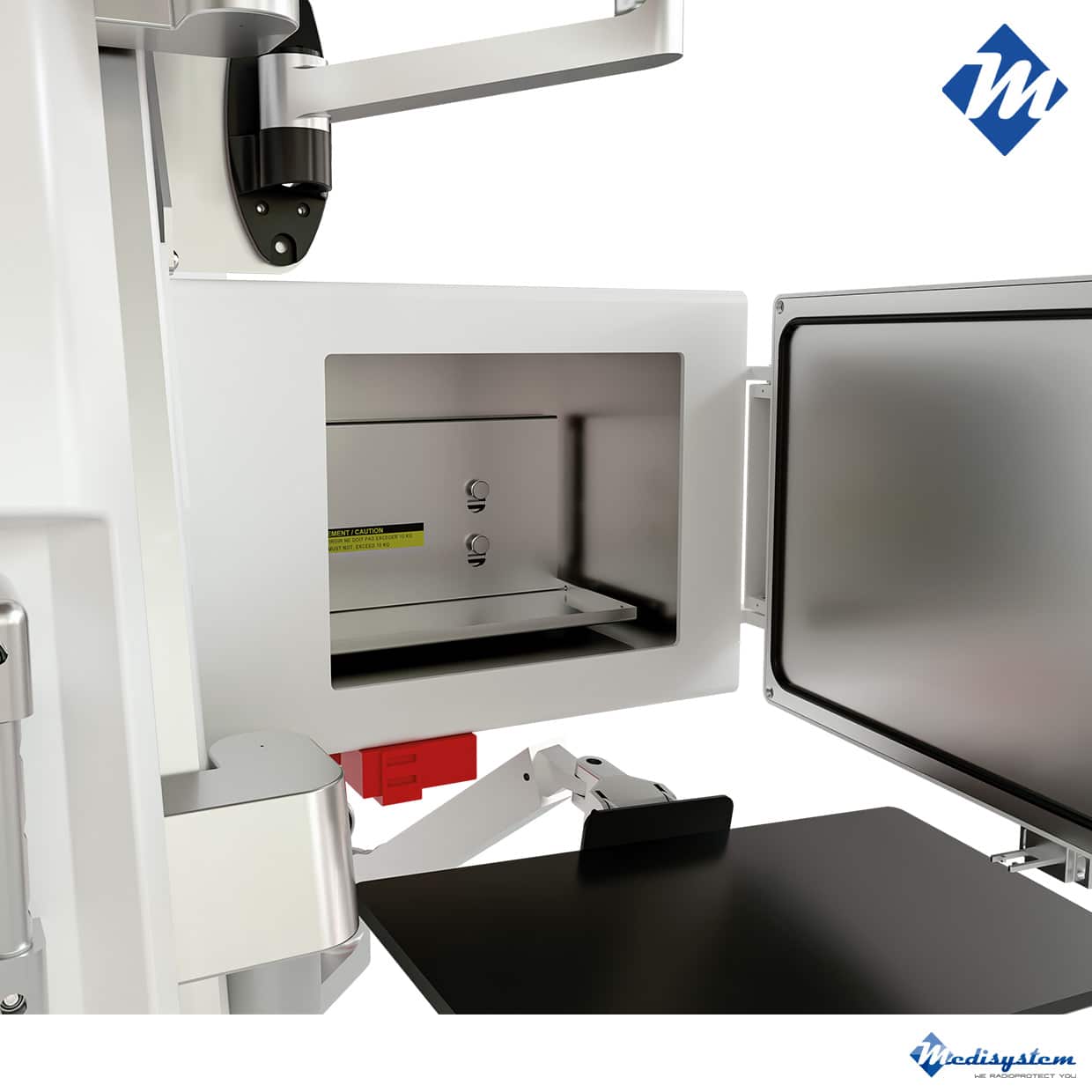

• A lateral airlock chamber features a 20 mm lead shield and is equipped with a 316L stainless steel sliding tray mounted on a slide rail, withstanding loads of up to 10 kg, for moving equipment and patient doses in and out.
• An optional interlock system with the outer doors is available.

Learn more about our available options

Medi 9000 PET 4R hot cell respects the regulatory framework european directives 2006/42/CE 2004/108/CE, 96/29 EURATOM, Good Preparation Practices (GPP & GMP) in accordance with French Authority for Nuclear Safety and Radiation Protection (ASNR) decisions, with Class A (GMP criteria), class C (GMP criteria) or class b as an option and standard ISO 14644.
