• Easy to use: small size and light weight
  • White PVC: waterproof and durable material
  • Ergonomic: full visibility of the work surface, at a 23° angle

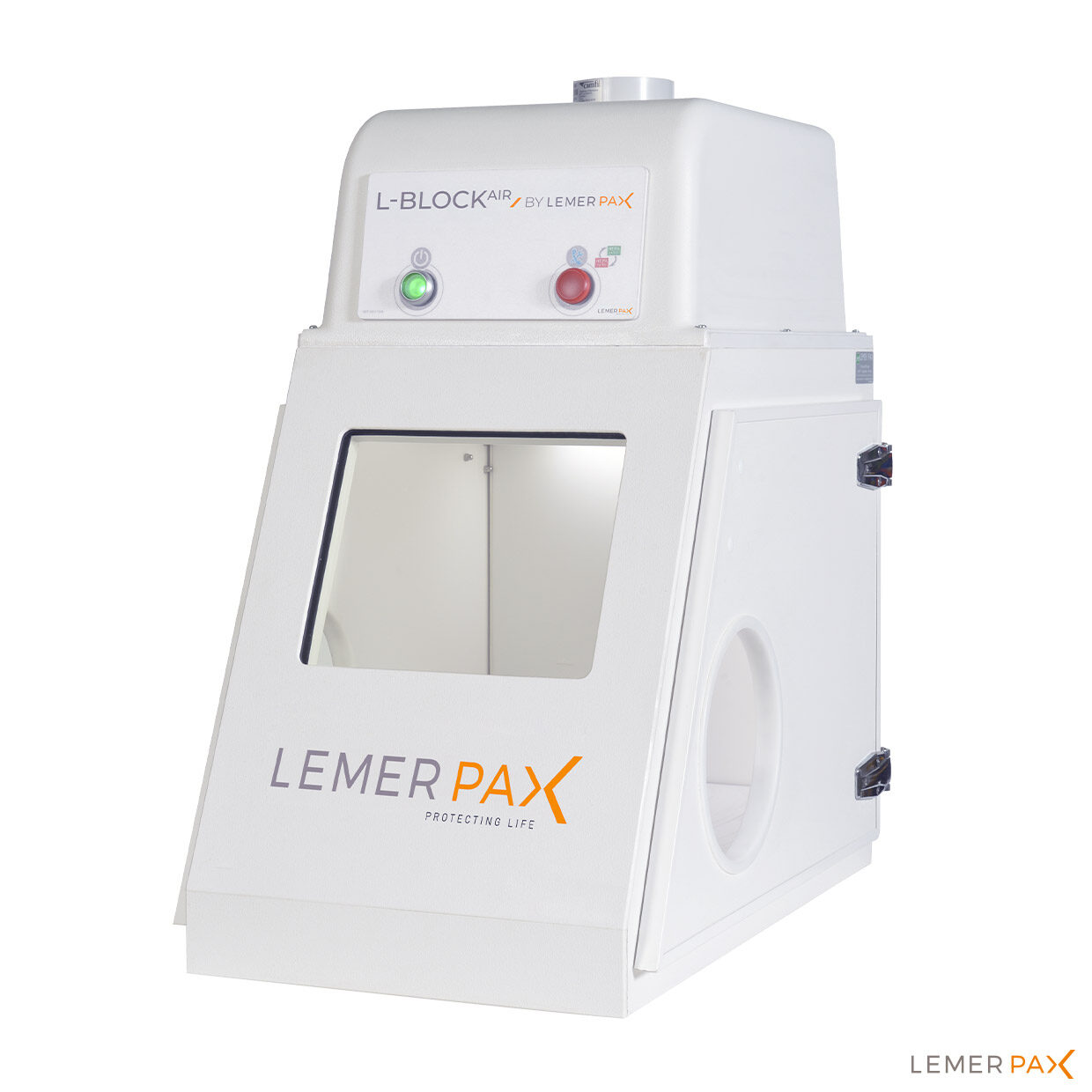

L-Block Air ISO 5 is a self-contained, mini work top shielded cabinet with overpressure for the containment of Low and Medium Energy radioisotopes.

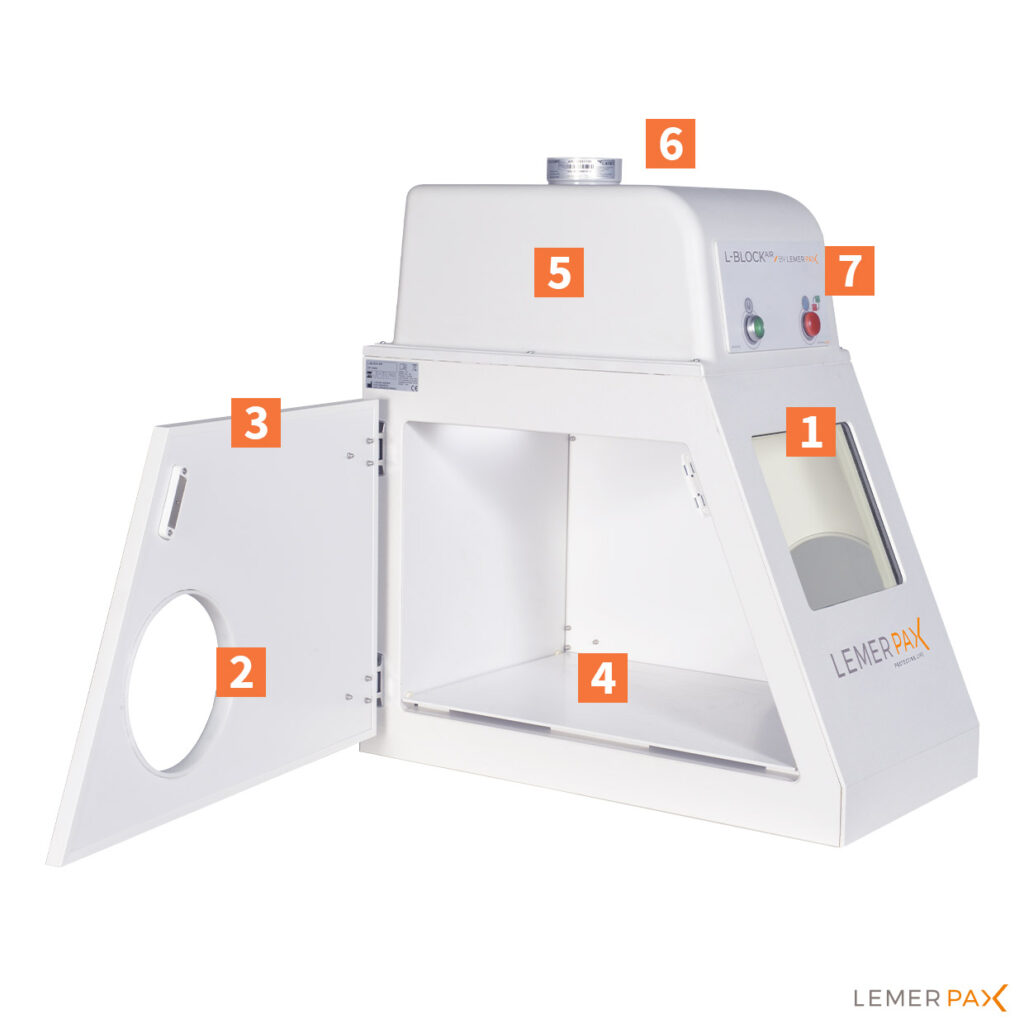

The radiation protection consists of lead screens on all sides of the cabinet (15 mm at the front and 4 mm at the back and on the sides) and a 16 mm thick laminated lead glass window [1] at the front, at a 23° angle, for full visibility of the work surface and ergonomic use.

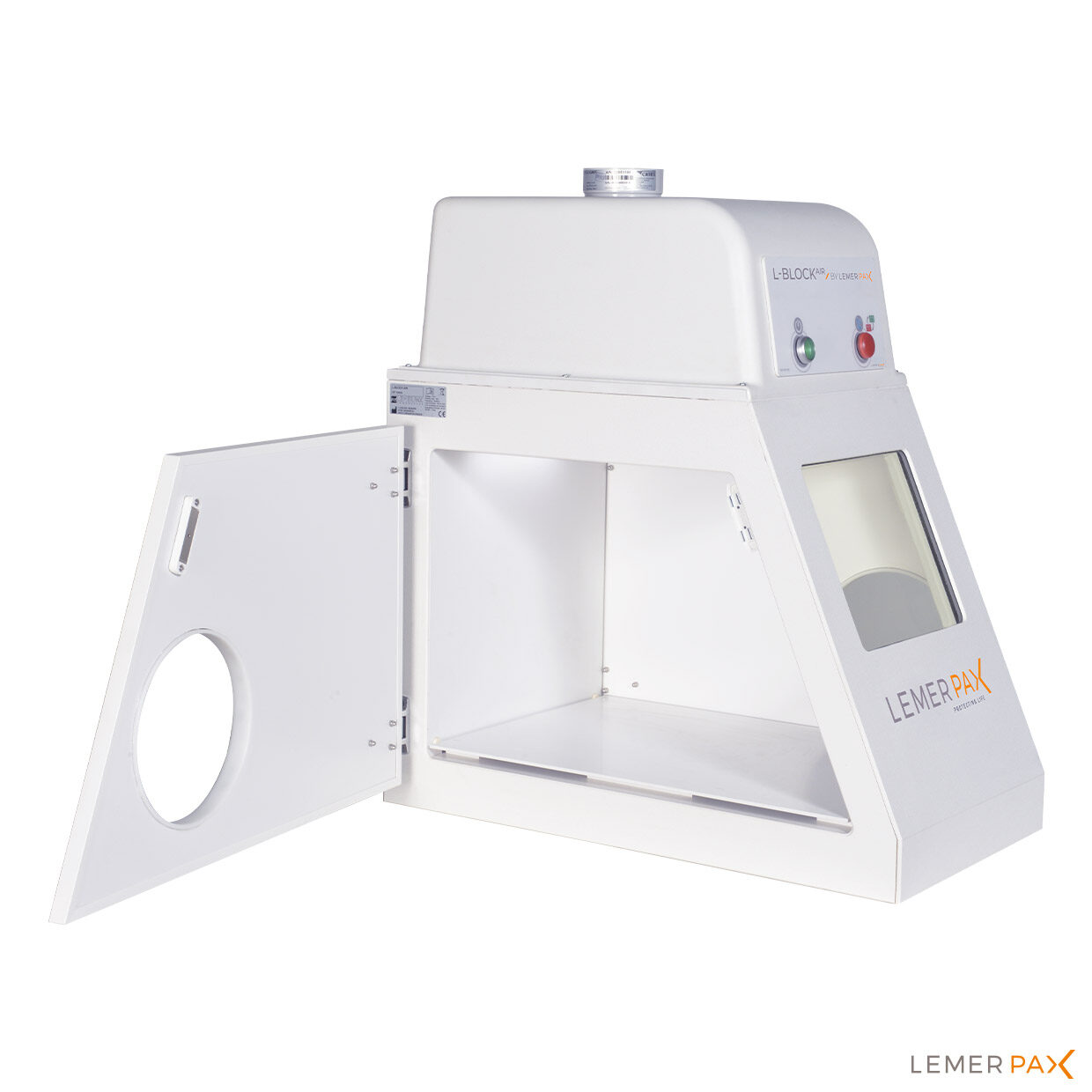

Two side ports [2] on each shielded door [3] are available to facilitate the passage of arms into the workspace ventilated with laminar flow. The completely removable work surface [4] is made of white PVC, a smooth, waterproof and durable material.

The self-contained ventilation and filtration system of the L-Block Air consists in:

  • self-regulating fan in the technical compartment [5] at the top as well
  • pre-filter [6] and HEPA H14 filter
  • A filter saturation indicator [7] protects the users and alerts them when required

Finally, its small size and light weight (110 kg) make it an easy and quick to install stand-alone unit, without any need to connect to the ventilation system of the room in which it is placed.


  • Overall external dimensions: L 658 x D 412 x H 700 mm
  • Effective dimensions: L 535/360 x D 368 x H 340 mm
  • Tare weight: 110 kg
  • Exterior finish: ABS
  • Interior finish: PVC
  • Type of lighting: LED
  • Shielding thickness: 15 mm of lead on the front 4 mm of lead on the sides, at the back and on the work surface
  • Lead glass window: L 254 x D 204 x Th. 16 mm
  • Work surface air quality: ISO 5
  • Laminar flow filtration: HEPA filter
