Shielded dry bath
Thermostatically controlled system
Reference :
00014837
Download the product sheet for more references
The shielded dry water bath is used during the heating stages of certain radiolabelling operations or reconstitution of cold kits with radioisotopes such as 99mTc.
WHY CHOOSE Shielded dry bath
- Heat and power indicator light
- Wide temperature controle range (up to 150°C)
DESCRIPTION
The shielded dry water bath is used during the heating stages of certain radiolabelling operations or reconstitution of cold kits with radioisotopes such as 99mTc. It can be installed on a benchtop, behind a screen, with its 5 mm lead shield, or integrated into the Easypharma Compact® and 4R Low and Medium Energy hot cells or into the PSMEB.
Shielded dry bath: high-precision digital dry block heater
Digital, it is controlled by microprocesor with a setting resolution of one tenth of a degree. The set temperature, which can range from 5 to 150°C, is automatically stored in the memory if the appliance is switched off or in the event of a power failure.
This bath also features an independent built-in digital timer with an audible alert when the time is up without interrupting the heating.
The dry water bath is available in two versions for 230 V and 115 V power supplies to meet the electrical requirements of all countries.

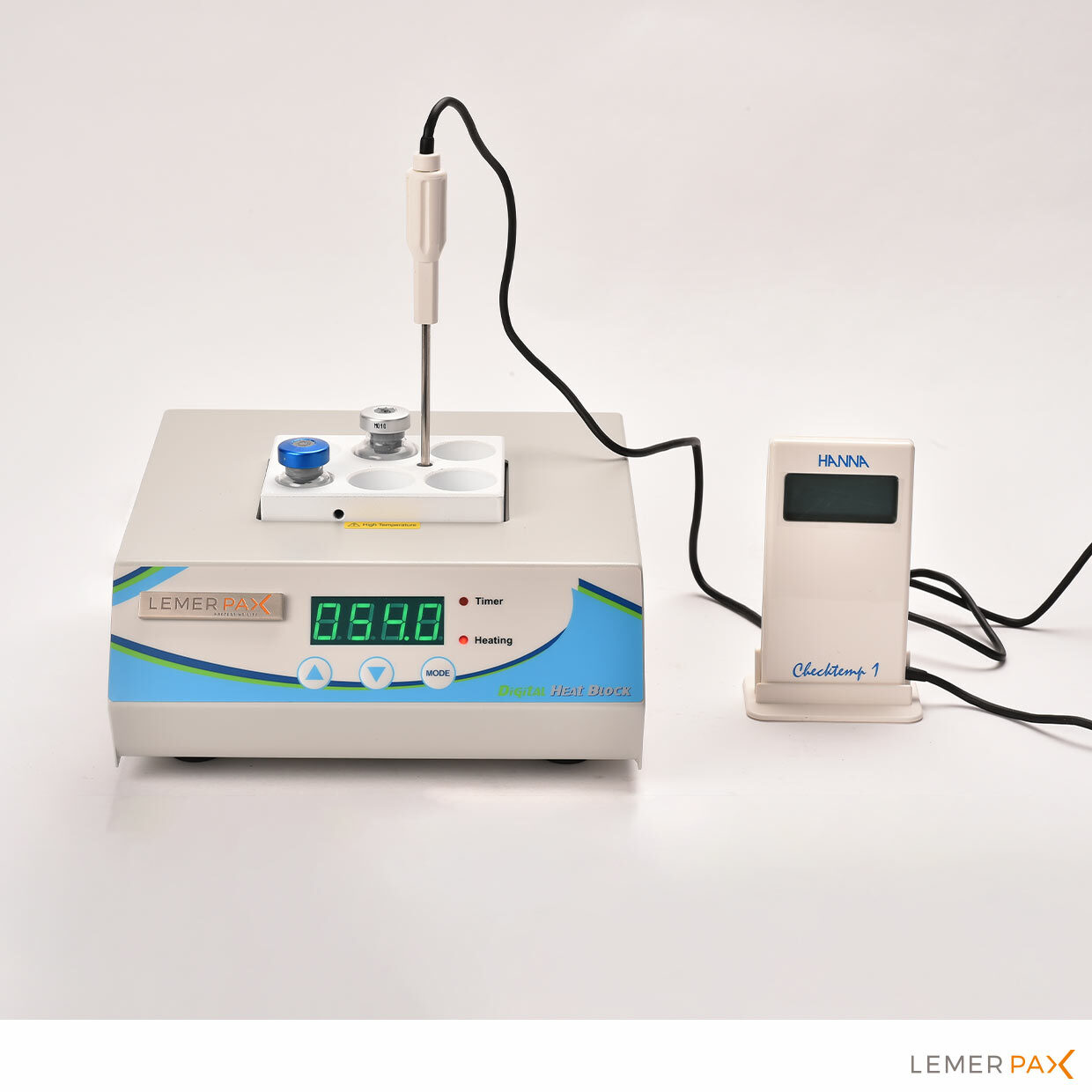

It is supplied with a thermometer [1], fitted with a stainless steel probe [2], for improved accuracy and to ensure the actual temperature inside the vial rack [3].
This shielded rack is made of 5 mm lead coated with Teflon (PTFE) and features 6 slots with different diameters. It can be modified on request, to adapt to several vial models and sizes.
A stainless steel handle is also provided to remove the rack after the heating time and prevent burns.
A heating/cooling unit reference with Peltier design and high energy efficiency allowing to cool or heat the preparations from -10 to 100°C is also available (contact us for more information).
| Indice | Diameter (mm) | Depth (mm) |
|---|---|---|
| A | 24.5 | 30 |
| B | 26.5 | 40 |
| C | 26.5 | 42 |
| D | 22.5 | 40 |
| E | 26.5 | 37 |
| F | 28.5 | 47 |
CHARACTERISTICS
- External dimensions: L 200 x D 234 x H 96 mm
- Temperature range: 5 to 150°C max.
- Heating system time: 1 hour in stabilisation
- Temperature display resolution: 0,1 °C
- Power: 200 W
- Standard electrical specifications: : 230 V, 50-60 Hz (also available in 115 V - Ref: 00043732)
- Weight: 6,12 kg
