WHY CHOOSE BPP 30 HV

  • Ergonomics : height adjusted by pedal-actuated hydraulic system
  • Optimum whole body radiation protection : by adjusting the height

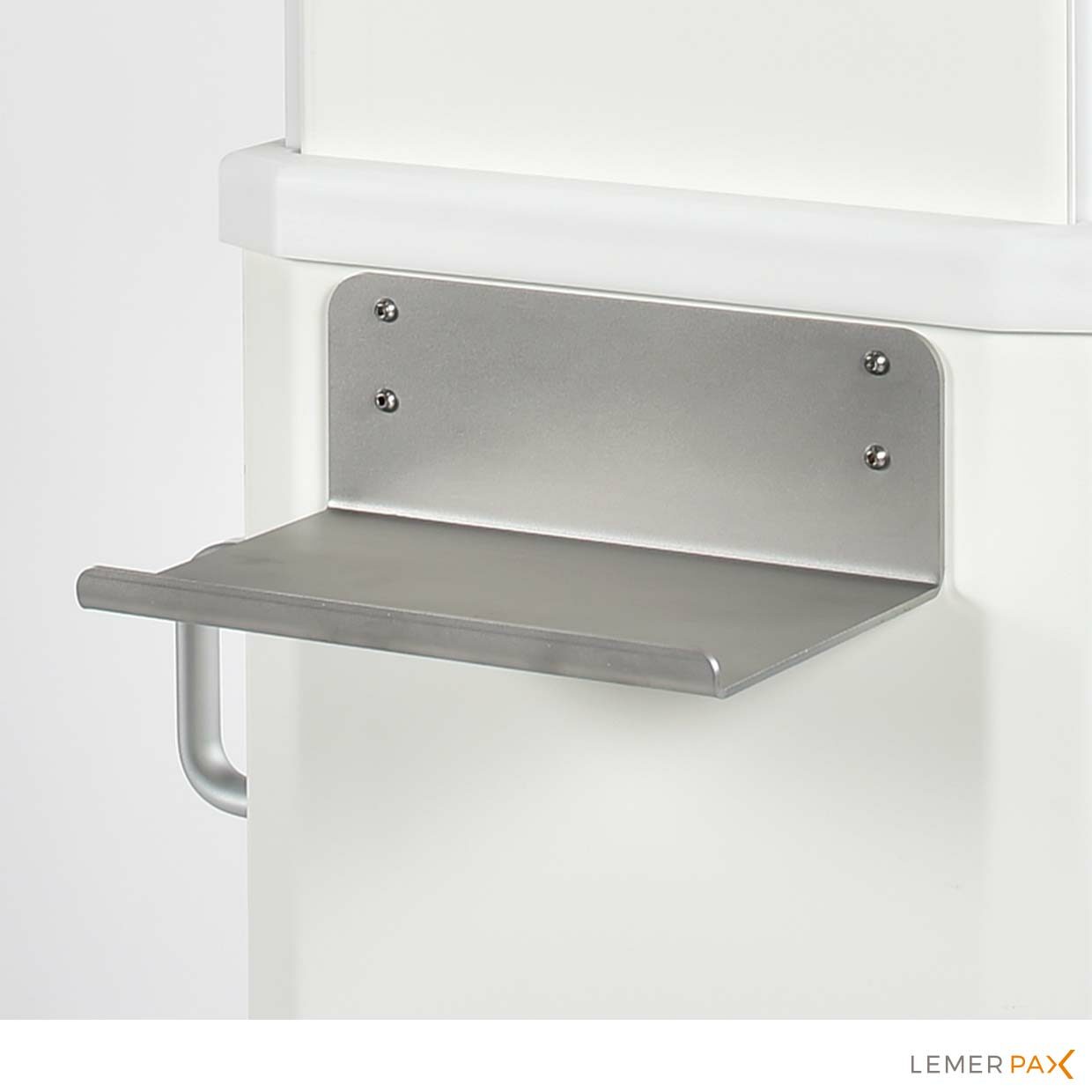

  • Adaptable : optional shelf
  • Optimum viewing : high-density lead glass window inclined at 45°
DESCRIPTION
CHARACTERISTICS
ADDITIONNAL PRODUCT

DESCRIPTION

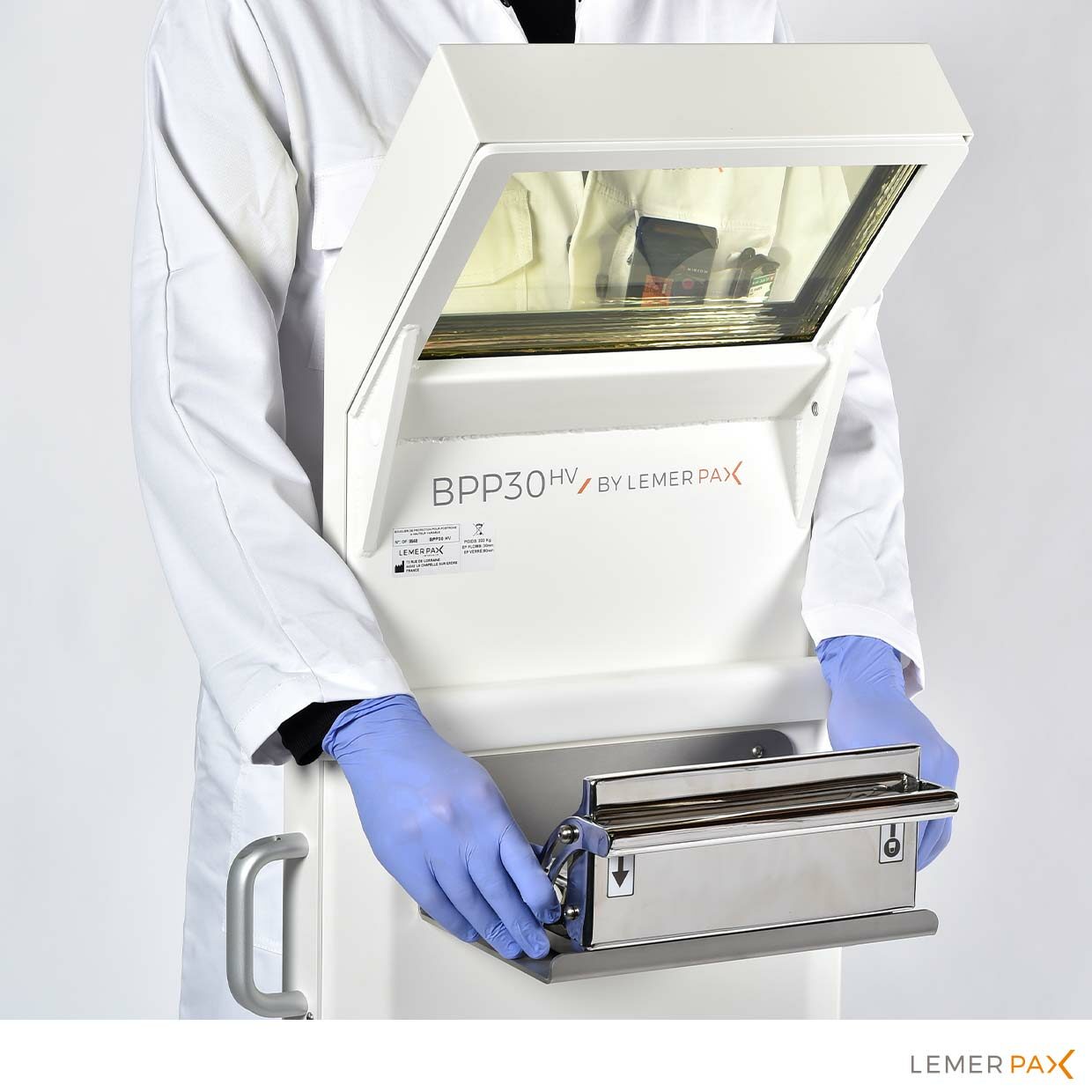

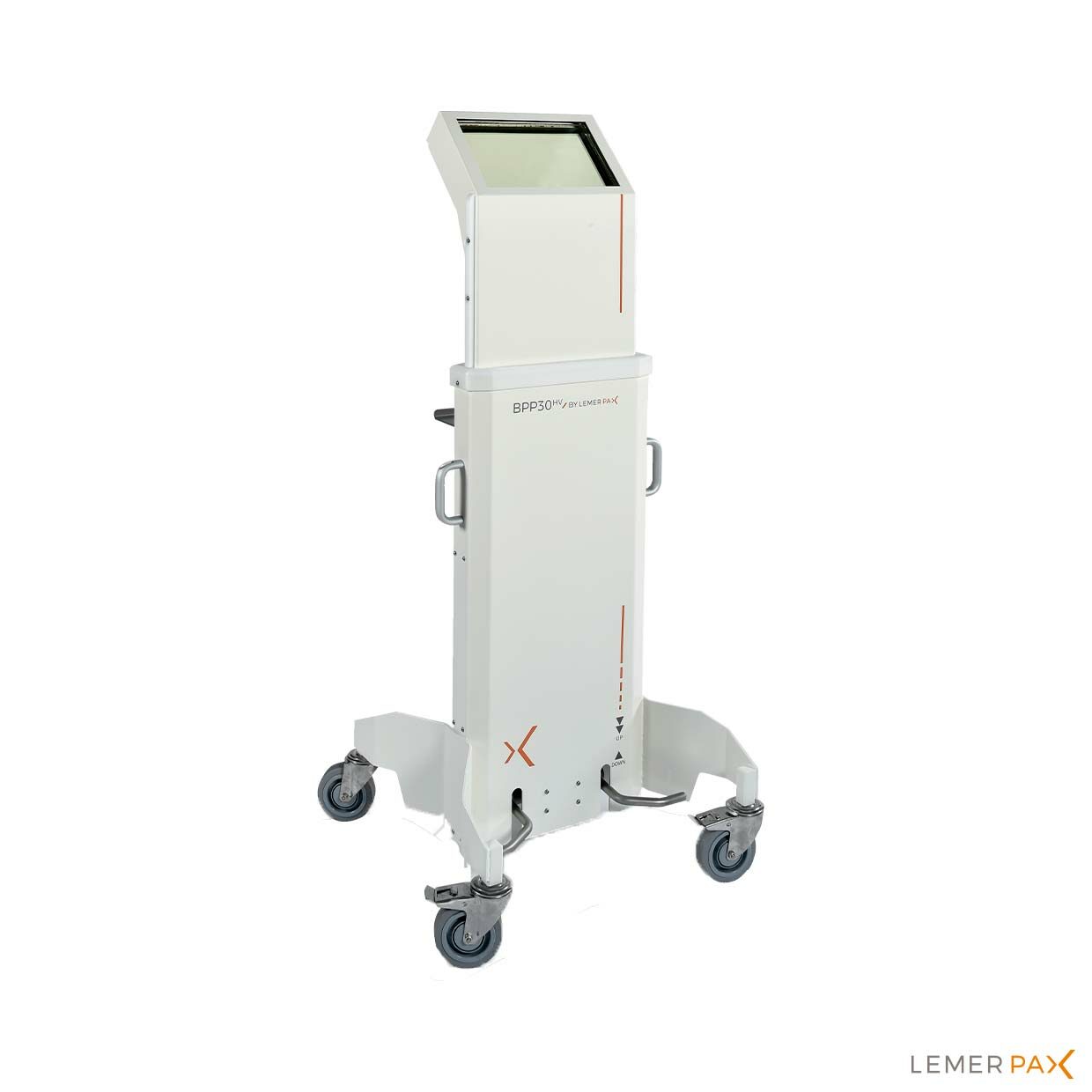

The BPP30 HV mobile protection shield offers optimal vision thanks to its lead glass viewing window while protecting the operator from high energy radiation.

The BPP30 HV mobile shield was developed to protect the operator when handling radioactive sources.

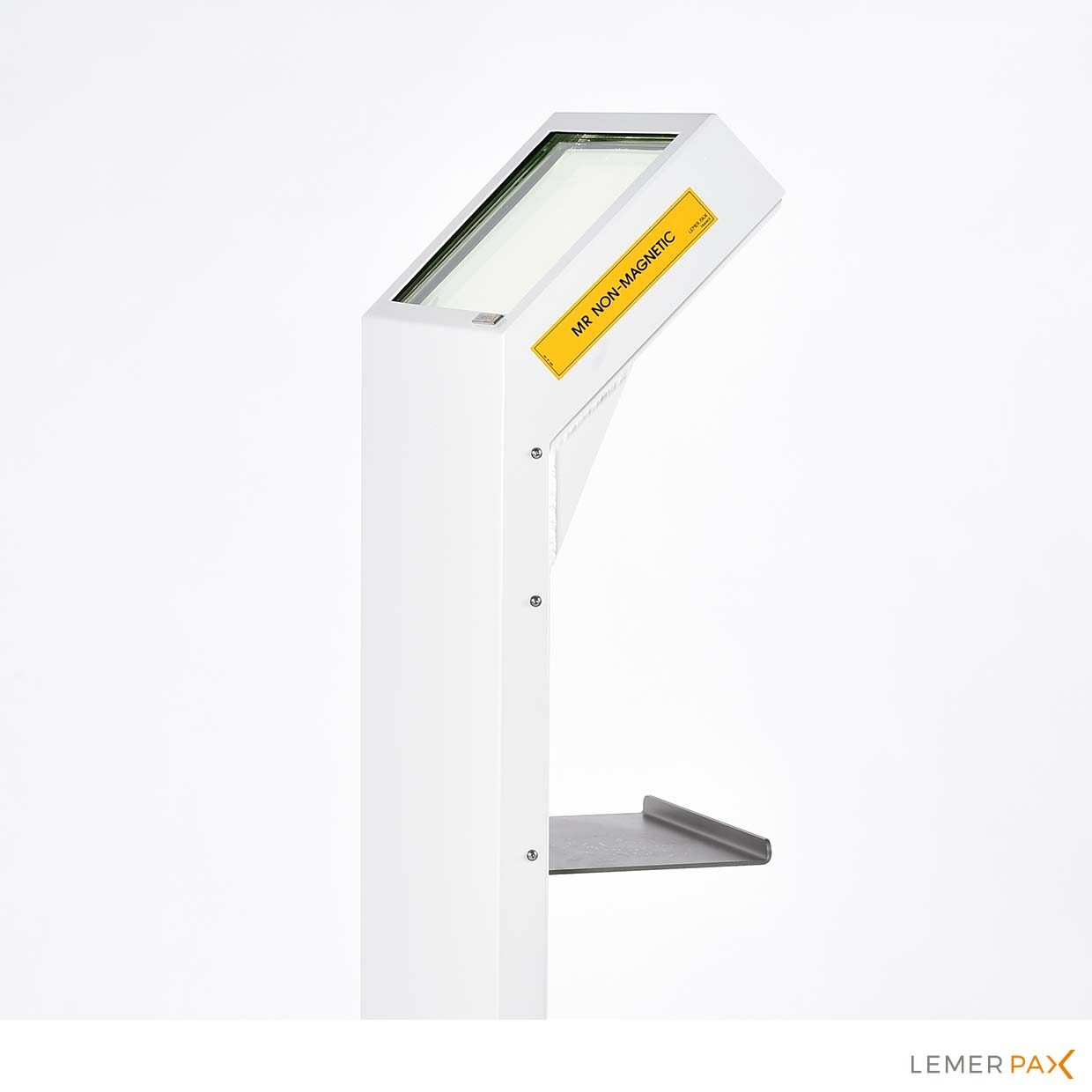

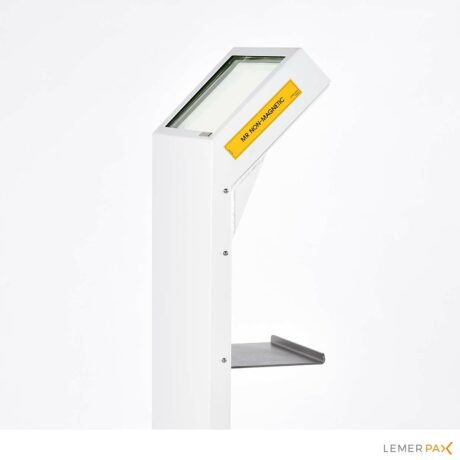

A non-magnetic version also exists: BPP30 IRM.

CHARACTERISTICS

  • Outer dimensions : L 666 x D 739 x H 1,447/1,647 mm
  • Height when inclined : 1,230 to 1,430 mm
  • Viewing window dimensions : L 320 x H 200 x Th. 80 mm
  • Window angle : 45°
  • Weight : 255 kg
  • Radiation protection : 30 mm lead / 80 mm lead glass
  • Volume : L 1,025 x D 725 x H 1,800 mm
  • Weight : 300 kg

ADDITIONNAL PRODUCT
