Manipulation ball joints
Reference :
1V0 400
Download the product sheet for more references
For hot cells
WHY CHOOSE Manipulation ball joints
- Regulatory compliance : AFNOR NF M62-001
- Uniform radiation protection : up to 200 mm lead equivalence
- Operator comfort : limited handling effort
DESCRIPTION
The patented Lemer Pax manipulation ball joints have very low friction, reducing the effort involved in handling while providing biological protection.

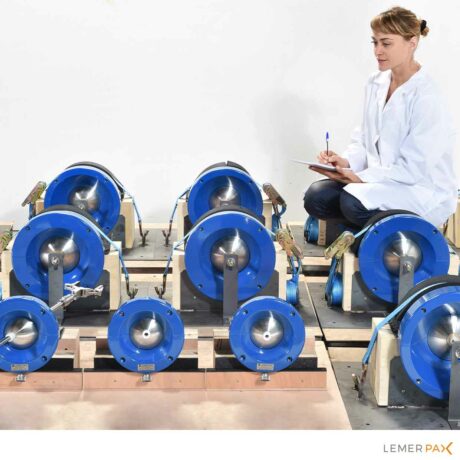

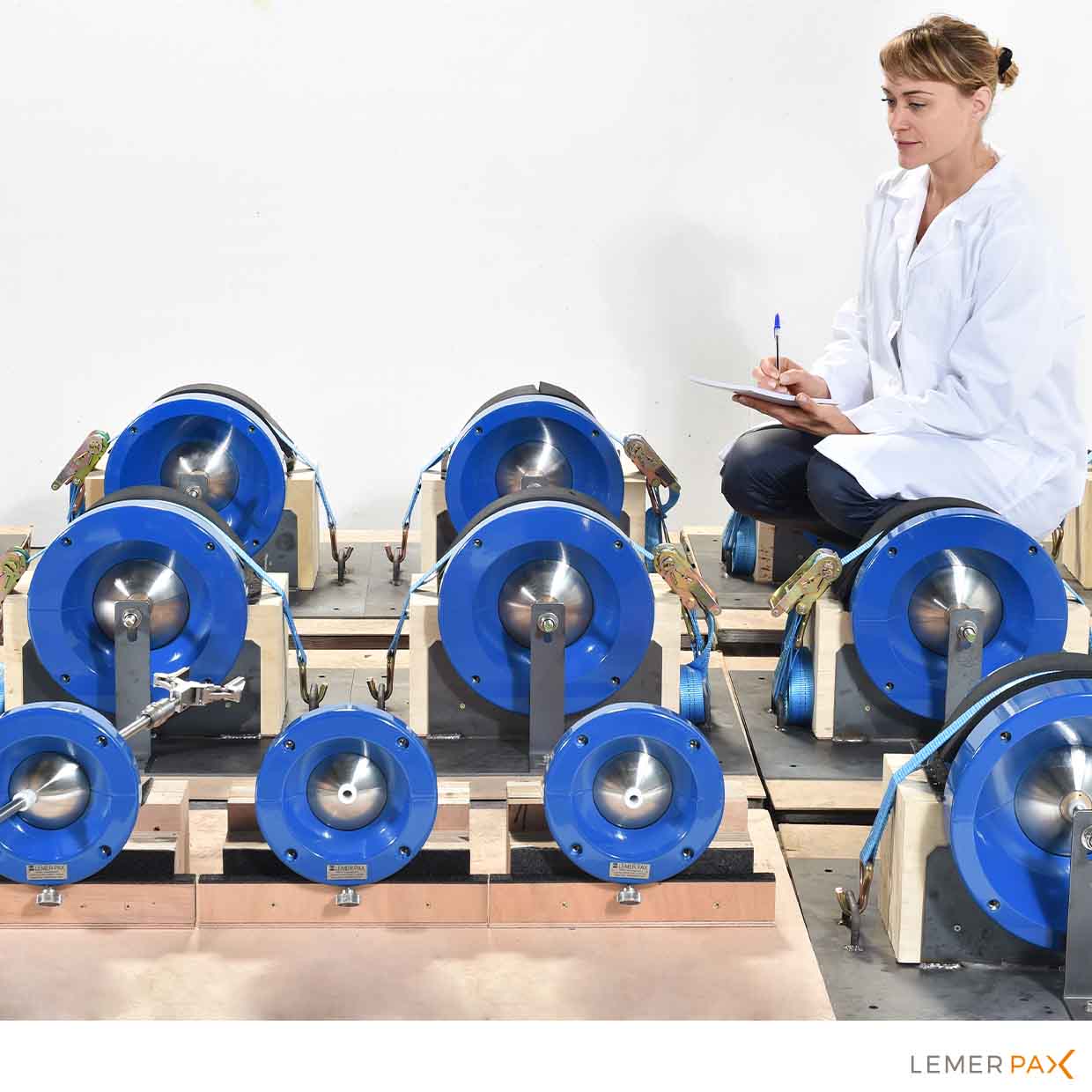

Manipulation ball joints: effortless handling

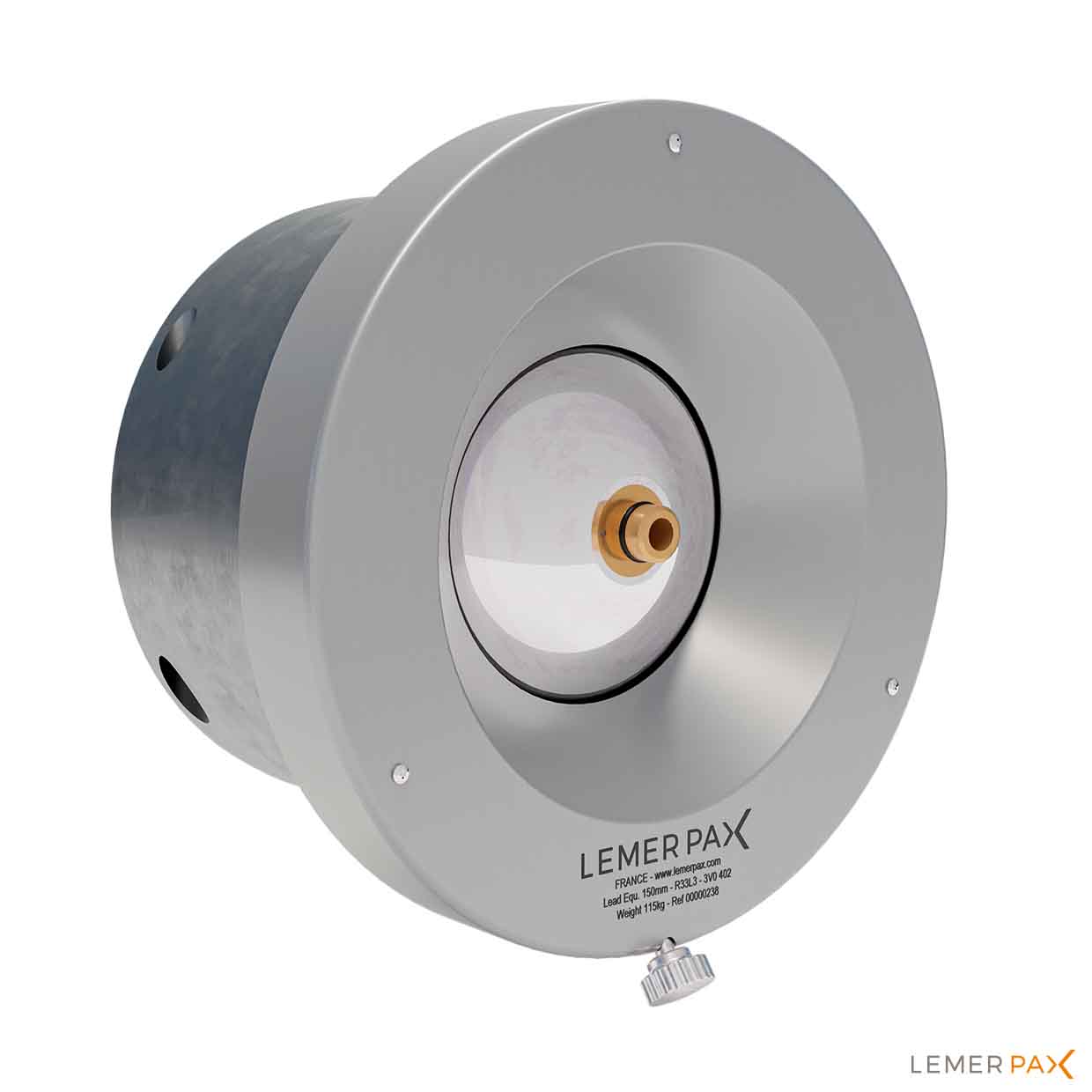

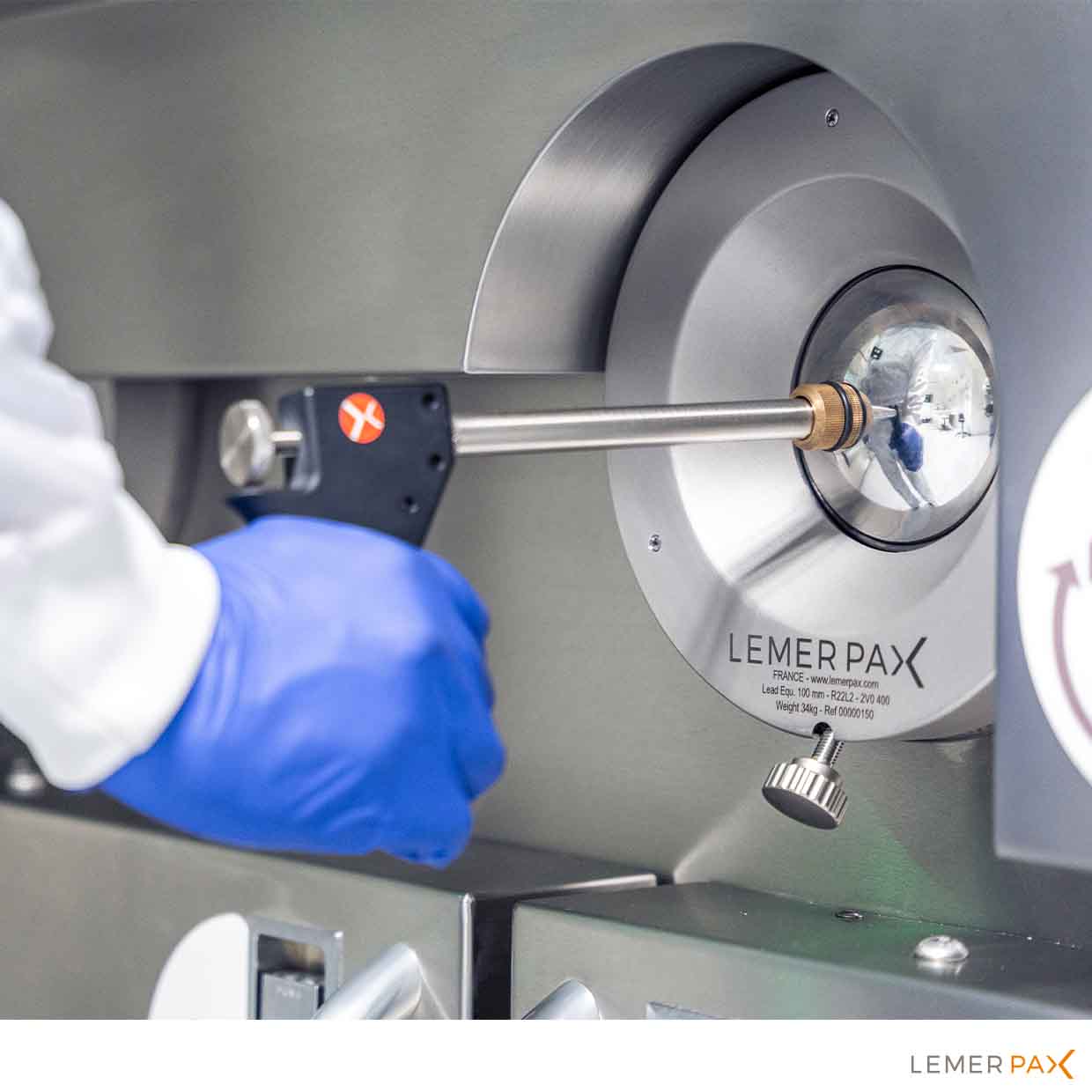

The Lemer Pax shielded manipulation ball joint allow angular and axial motions of the remote handling tongs inside hot cells.
They are supplied complete with manipulation ball and assembly tools.
Designed for mounting on vertical walls, they provide radiation protection equivalent to up to 200mm of lead.
Compliant with ISO 7212 and ISO 9404-1 standards
Available options
- Ball joint for mounting on horizontal wall
- Tong rod passage diameter on request
- Lead frame for integration in lead walls
- Sealing ring (BE22 / BE33)

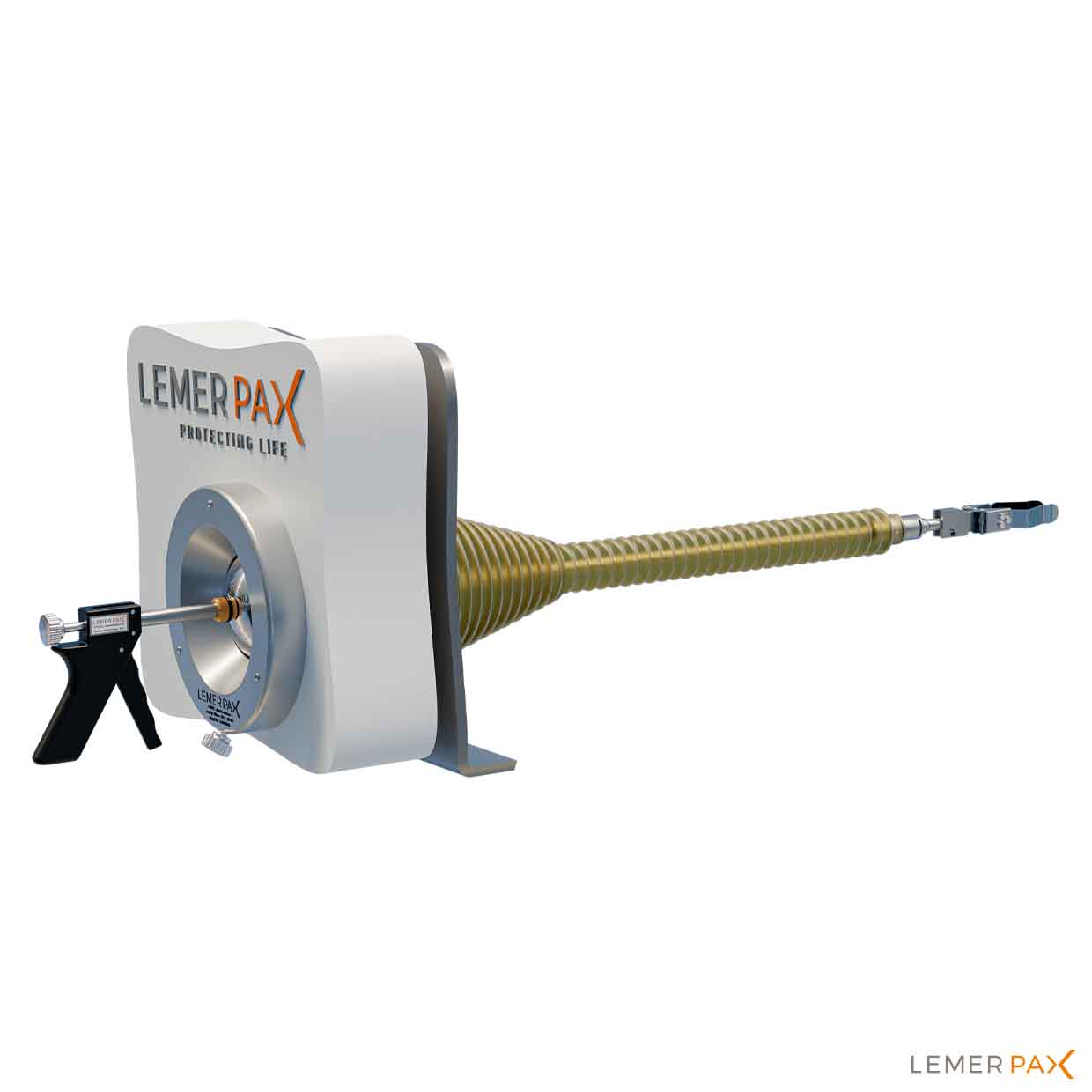

- Remote handling tongs
- Bellow seal for the tongs
CHARACTERISTICS
- Lead ball joints and frame
- Lead ball covered with special anti-friction stainless steel
- Frame finish very easy to decontaminate
- Stainless steel knob to immobilise the ball joint
- Secured with 4 stainless steel captive screws CHC M8
- Delivered with all handling and assembly tools
